OVERALL DIMENSION : 7’ High x 8’ Wide x 5” Depth. Additional 1.5” mounting flange on top and bottom. Style available in other sizes.
CONSTRUCTION : Fabricated 20 and 22 GA Powder Coated Galvanneal.

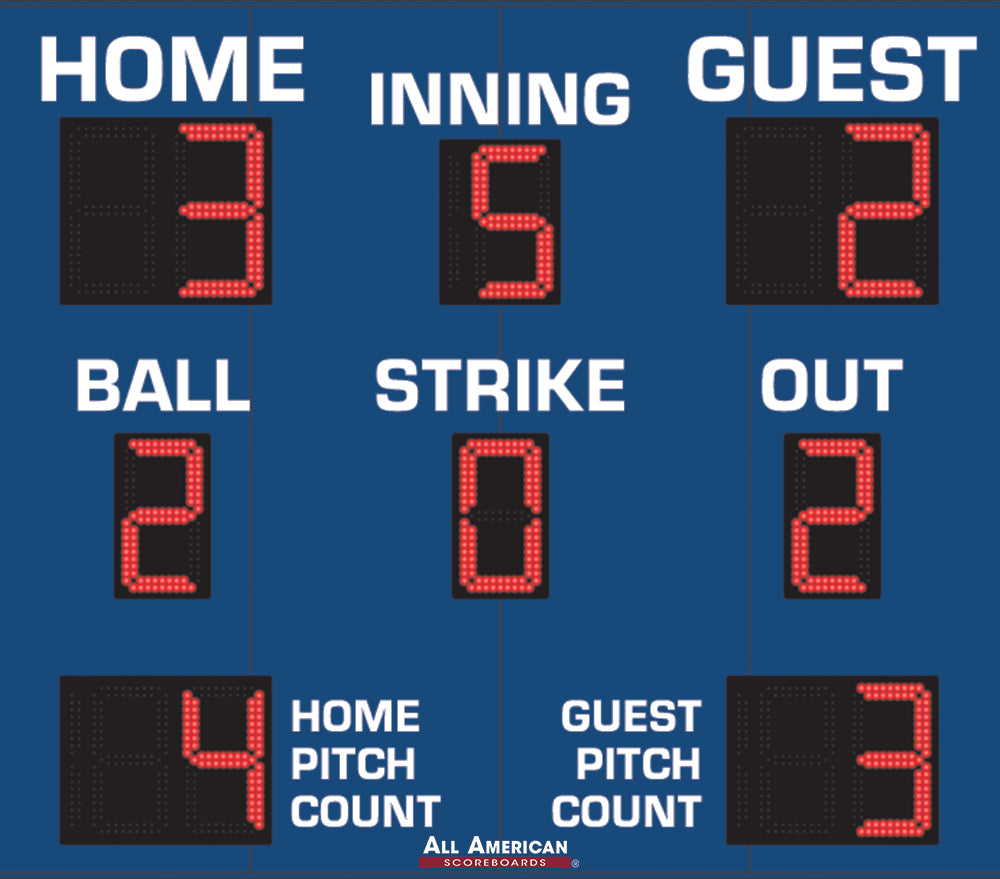

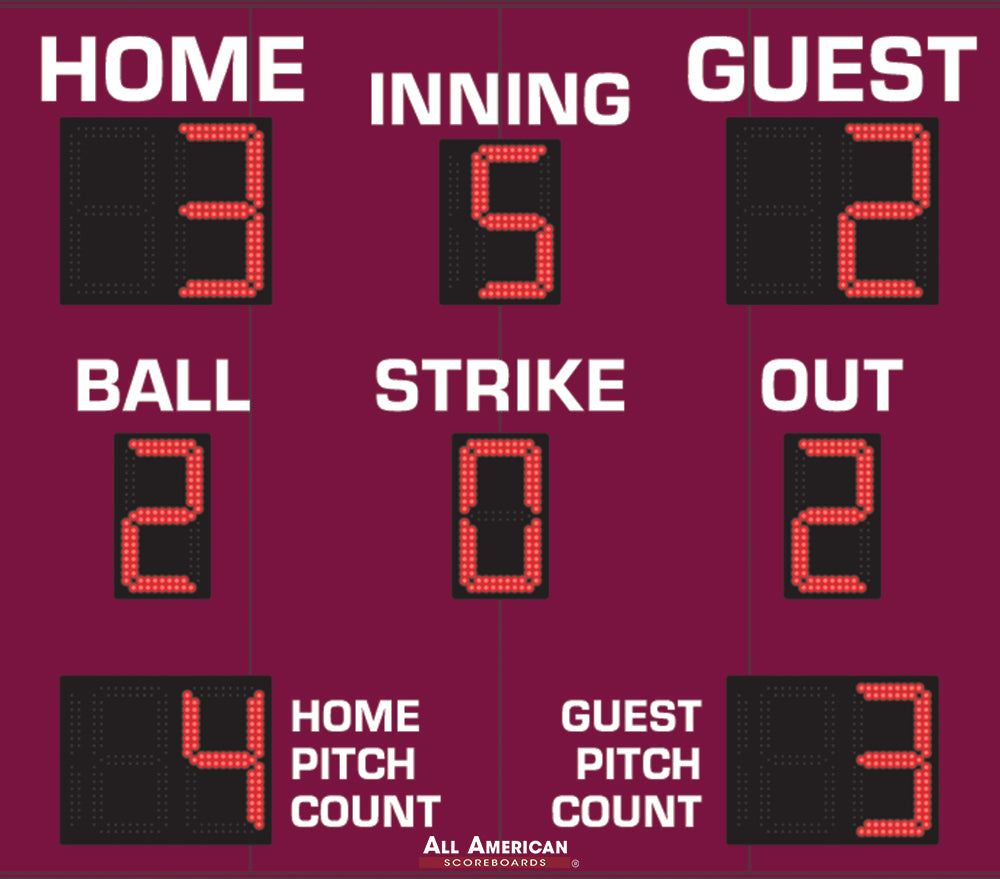

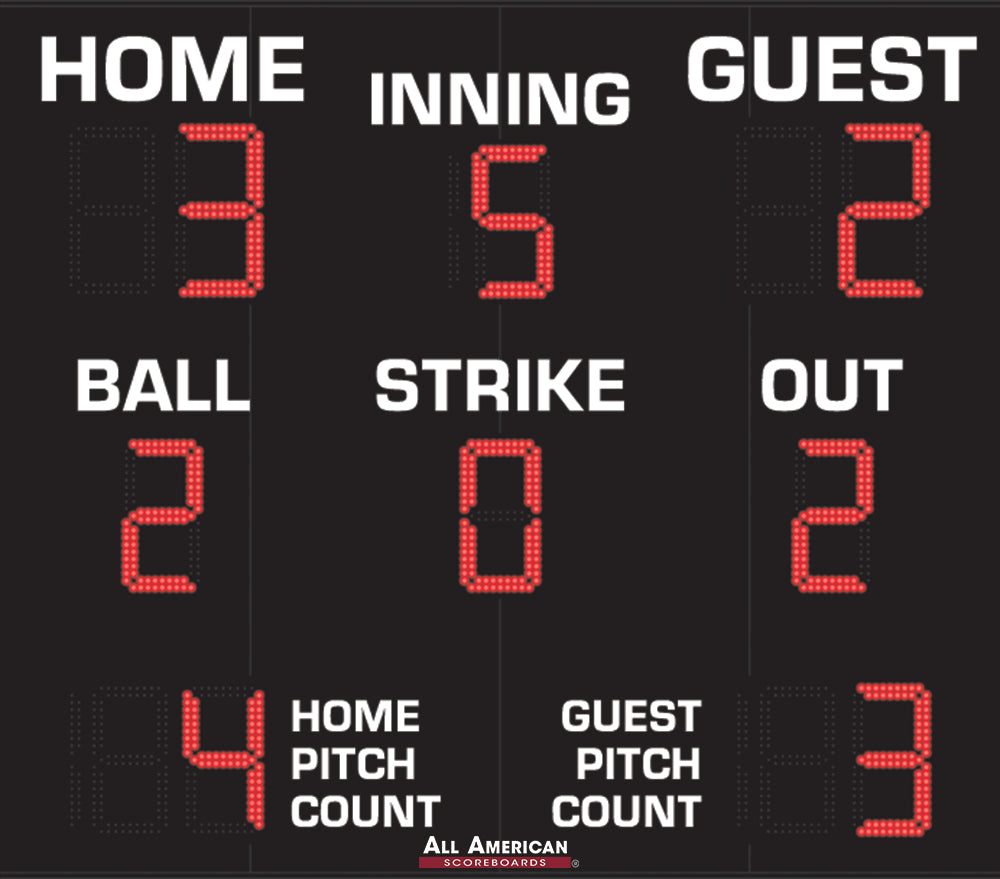

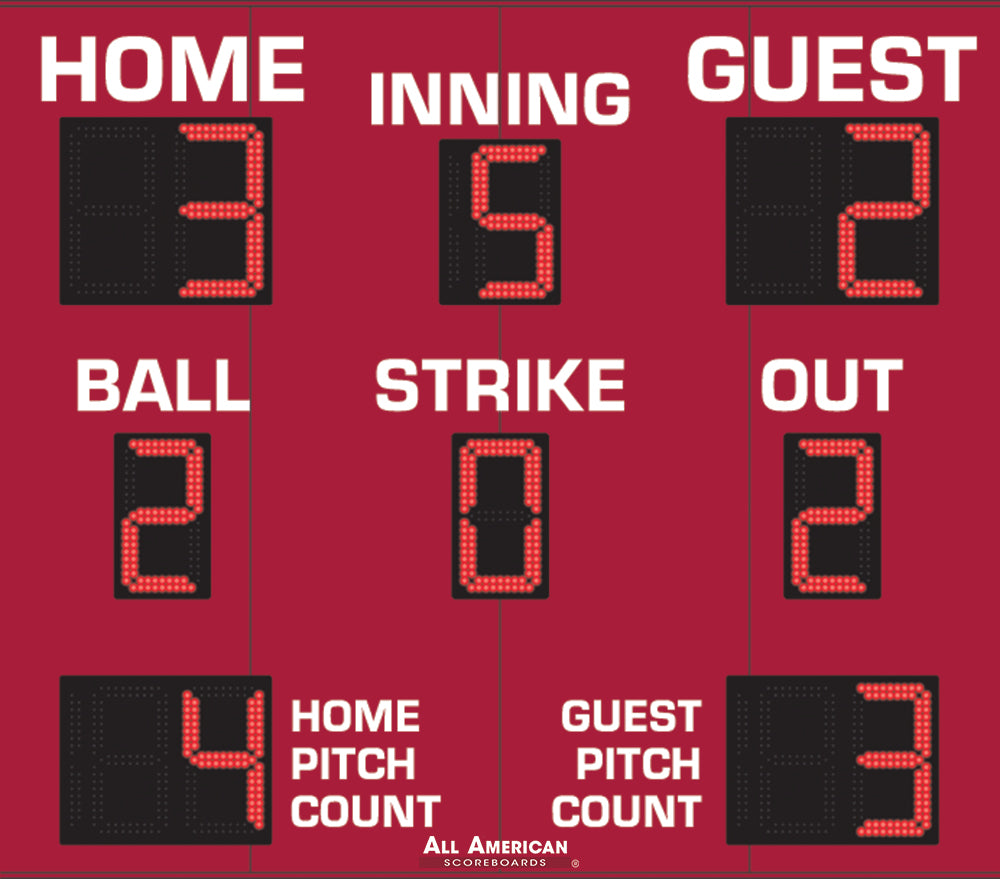

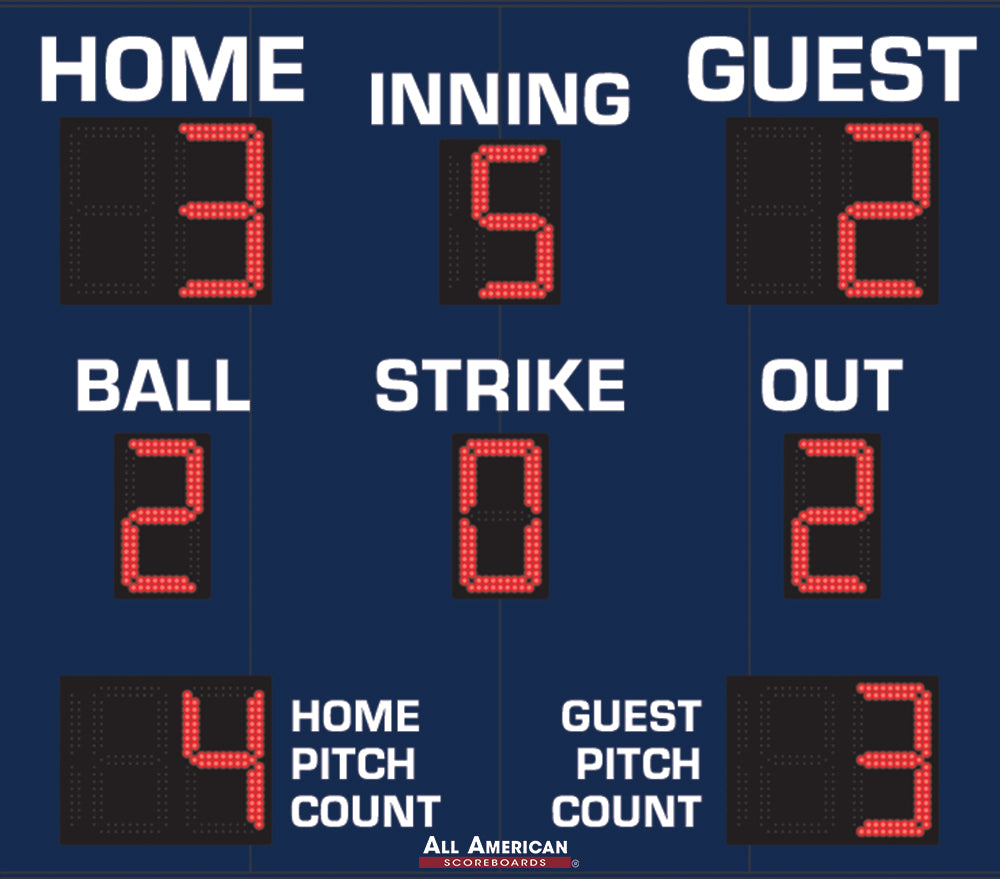

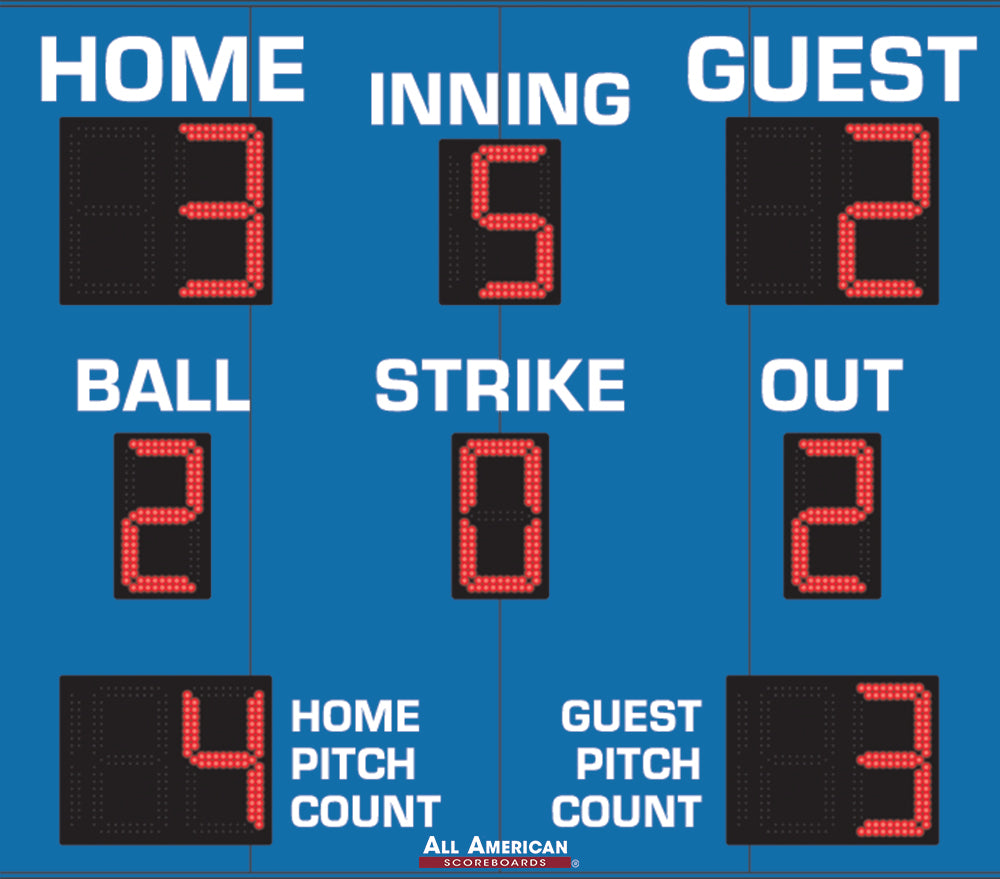

INFORMATION : Home & Guest Runs (16”), Inning (14”), Ball, Strike, Out, Hit (14”), Home & Guest Pitch Count (14”)
CAPTIONS : White vinyl captions: Home & Guest (6”), Inn (5”), Ball, Strike, Out (5”), Pitch
Count (3”)
HORN : Optional 100dB or 110 dB horn available. Recommended to be wired at time
of manufacture.
ELECTRONICS / DIGITS : 100% solid state, microprocessor controlled system with locking connectors. Ultra bright, exposed Red LED digits.
SERVICING : Sign will be serviceable by removing the home score face to access
components.
COMMUNICATION : Radio communication is standard using a 2.4 GHz Frequency hopping spread spectrum transceiver. Hardwire optional on scoreboard,
recommended to be installed at time of manufacture.
POWER REQUIREMENTS : 120VAC, 2.6 Amp. Installer to provide connection point or junction box to scoreboard. 20 Amp circuit recommended.
INSTALLATION : May be mounted to nearly any wall surface or a minimum of 2 posts/beams. Number and size of beams is dependent on soil condition and IBC wind
loading requirements. Hardware supplied to mount by drilling through the scoreboard flange and I-beam. Pressure and additional clamping systems available. Pole/beam installations require supplied mounting bar on flange.
ESTIMATED WEIGHT : 211 lbs.
WARRANTY : Five year guarantee against defects in materials and workmanship. Factory repair service for parts in warranty. Union label. UL Certified.
ADDITIONAL OPTIONS
MODEL NUMBER + ( )
Protective Lens Kit (PLK + Model Number). White, Green, Amber digits available (Red is standard).
AVAILABLE CONTROL CONSOLE (SOLD SEPARATELY)
MSC9000 (Multi-sport Desktop Console) Extruded Aluminum, high impact low
profile microprocessor control console. 5” high x 10.25” wide x 9” deep.
Weight: 4.3 lbs. Radio (1600 ft) is standard, simultaneous hardwire option
included. Internal rechargeable battery. Switch between multiple sports by
removing and replacing the slip sheet.
HRBA9000 (Handheld Baseball Remote) 6.5” high x 3” wide x 1” deep. Radio (500
ft) is standard. Internal rechargeable battery
