OVERALL DIMENSION 3’ High x 8’ Wide x 5” Depth. Style available in other sizes.
CONSTRUCTION Fabricated 20 and 22 GA Powder Coated Galvanneal.

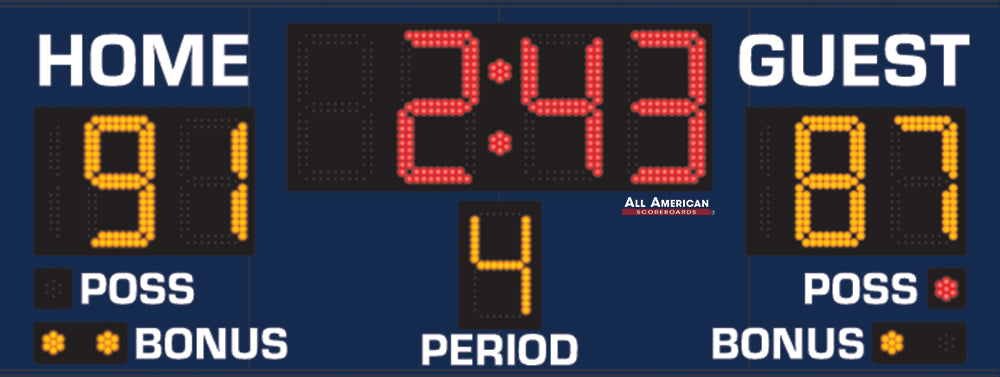

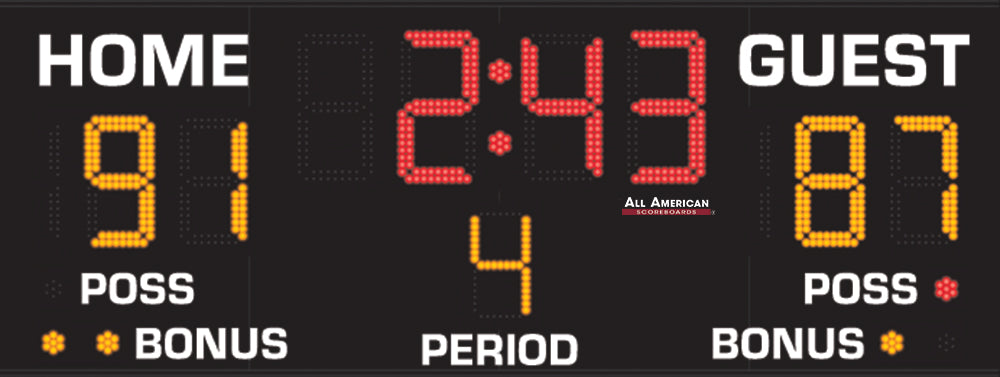

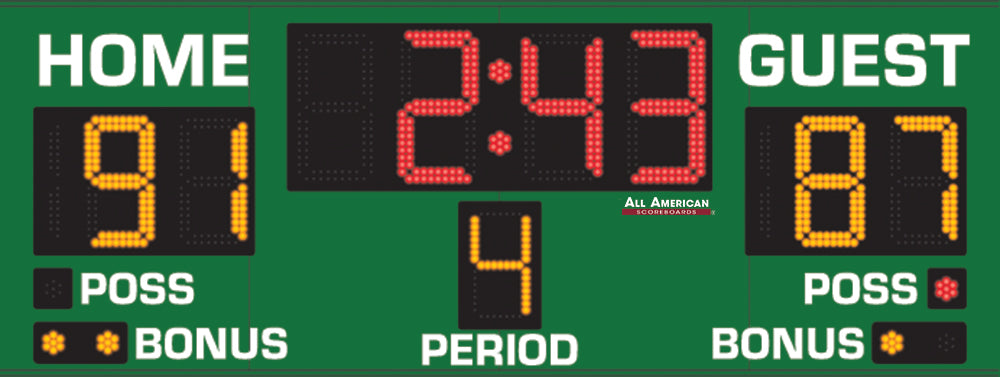

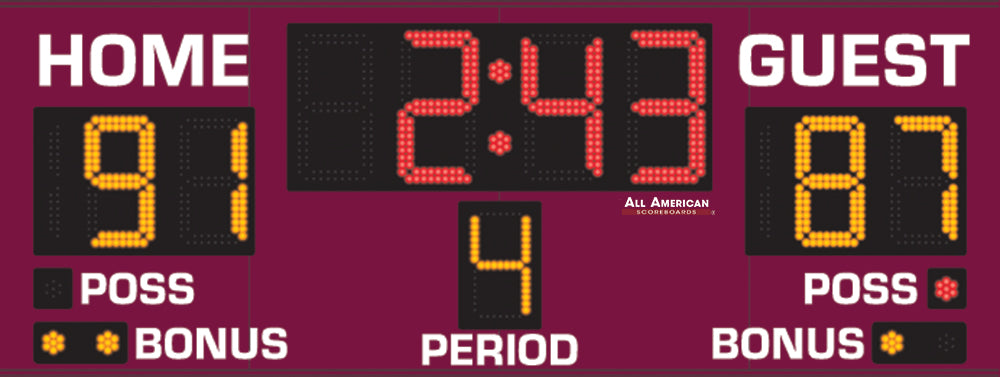

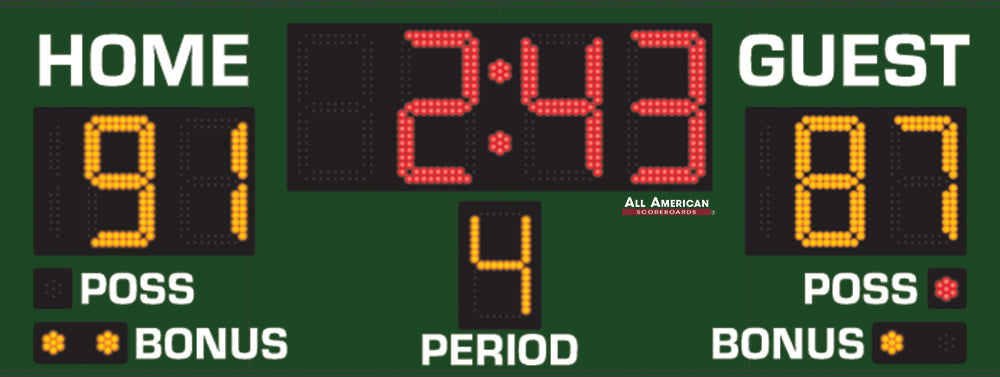

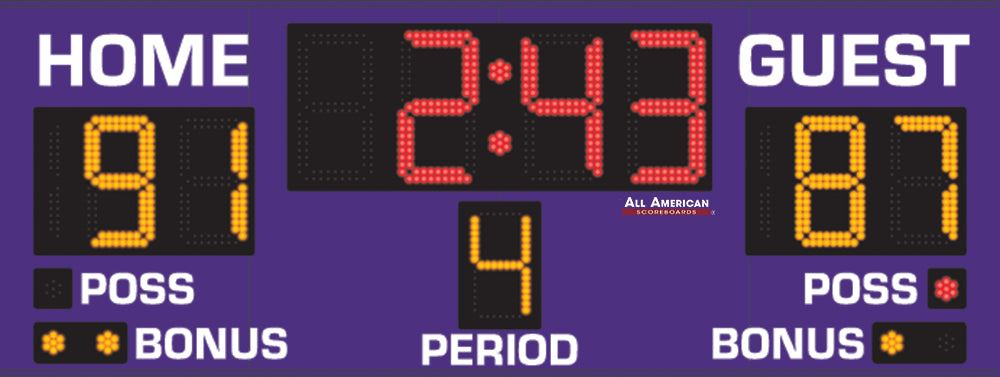

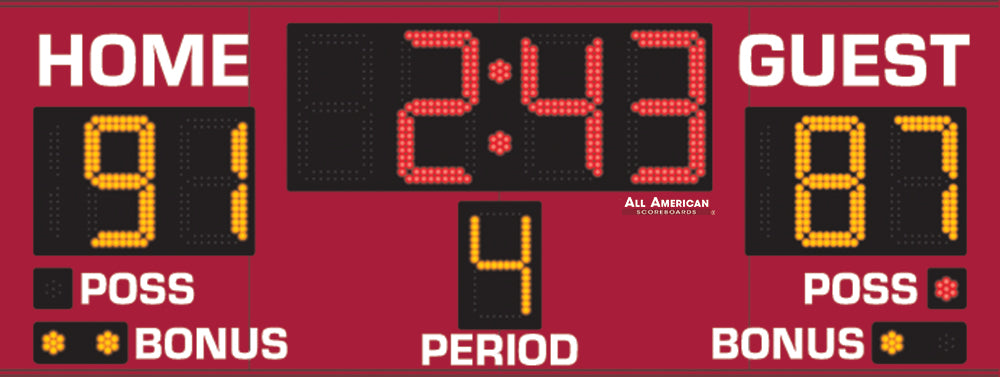

INFORMATION Game Time (14” Red), Home & Guest Scores up to 199 (12” Amber), Period (10” Amber), Possession Indicators (2” Red), Bonus Indicators (2”Amber)
CAPTIONS Scores (5.5”), Poss, Bonus, Period (2.75”)
HORN Included 100dB internal horn. 110 dB external trumpet horn available,
recommended to be wired at time of manufacture.
ELECTRONICS / DIGITS 100% solid state, microprocessor controlled system with locking connectors. Ultra bright, exposed Red and Amber LED digits.
SERVICING Sign will be serviceable by removing the home score digit pan to access
components.
COMMUNICATION Radio communication is standard using a 2.4 GHz Frequency hopping spread spectrum transceiver. Hardwire optional on scoreboard,
recommended to be installed at time of manufacture.
POWER REQUIREMENTS 120VAC, 1.3 Amp. Includes 6’ power cable exiting the top left of the cabinet with standard grounded 3 prong connector. Components can accept 100
270 VAC. 20 Amp circuit recommended.
INSTALLATION May be mounted to nearly any wall surface via lifting/mounting brackets, no other hardware supplied. Intended for dry locations.
ESTIMATED WEIGHT 100 lbs. Shipping Dimensions: (1)102Lx24Wx59H, 278 lbs (2)102Lx27Wx59H, 378 lbs
WARRANTY Five year guarantee against defects in materials and workmanship. Factory
repair service for parts in warranty. Union label. UL Certified.
ADDITIONAL OPTIONS MODEL NUMBER + ( )
Time Outs Left (TOL), Protective Lens Kit (PLK + Model Number). White, Green,
Amber digits available (Red and Amber as shown is standard). Deluxe Trim
(different colored powder coated top and bottom caps).
AVAILABLE CONTROL CONSOLE (SOLD SEPARATELY)
MSC9000 (Multi-sport Desktop Console) Extruded Aluminum, high impact low
profile microprocessor control console. 5” high x 10.25” wide x 9” deep.
Weight: 4.3 lbs. Radio (1600 ft) is standard, simultaneous hardwire option
included. Internal rechargeable battery. Switch between multiple sports by
removing and replacing the slip sheet.
HRBK9000 (Handheld Basketball Remote) 6.5” high x 3” wide x 1” deep. Radio (500
ft) is standard. Internal rechargeable battery
